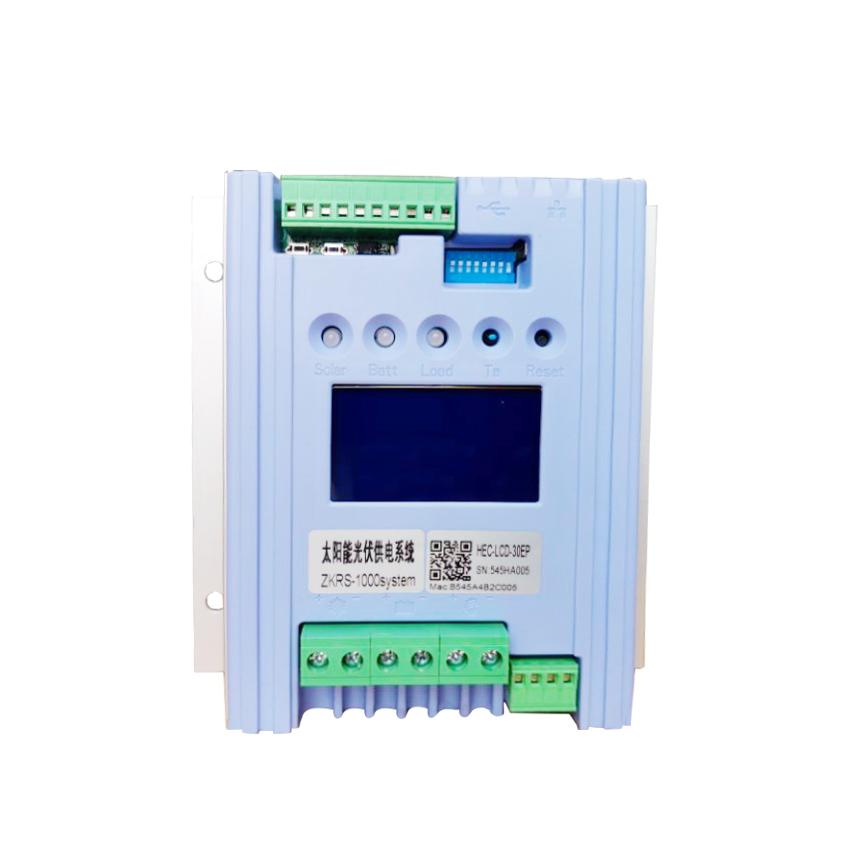

| HEC-LCD Controllers |
|
| Characteristic: |
|

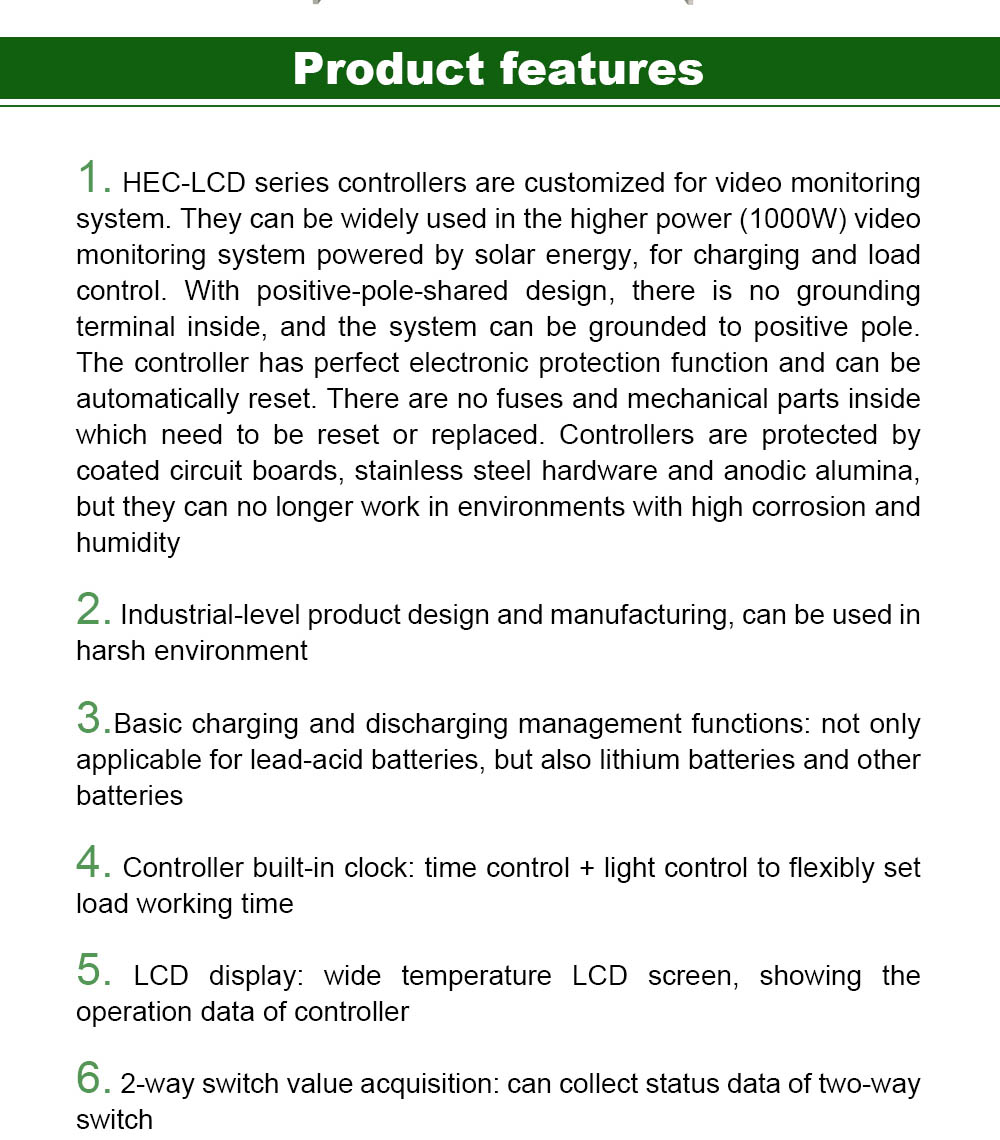

| HEC-LCD series controllers are customized for video monitoring system. They can be widely used in the higher power (1000W) video monitoring system powered by solar energy, for charging and load control. With positive-pole-shared design, there is no grounding terminal inside, and the system can be grounded to positive pole. The controller has perfect electronic protection function and can be automatically reset. There are no fuses and mechanical parts inside which need to be reset or replaced. Controllers are protected by coated circuit boards, stainless steel hardware and anodic alumina, but they can no longer work in environments with high corrosion and humidity.
Industrial-level product design and manufacturing, can be used in harsh environment;
Basic charging and discharging management functions: not only applicable for lead-acid batteries, but also lithium batteries and other batteries.
Controller built-in clock: time control + light control to flexibly set load working time;
LCD display: wide temperature LCD screen, showing the operation data of controller;
2-way switch value acquisition: can collect status data of two-way switch.

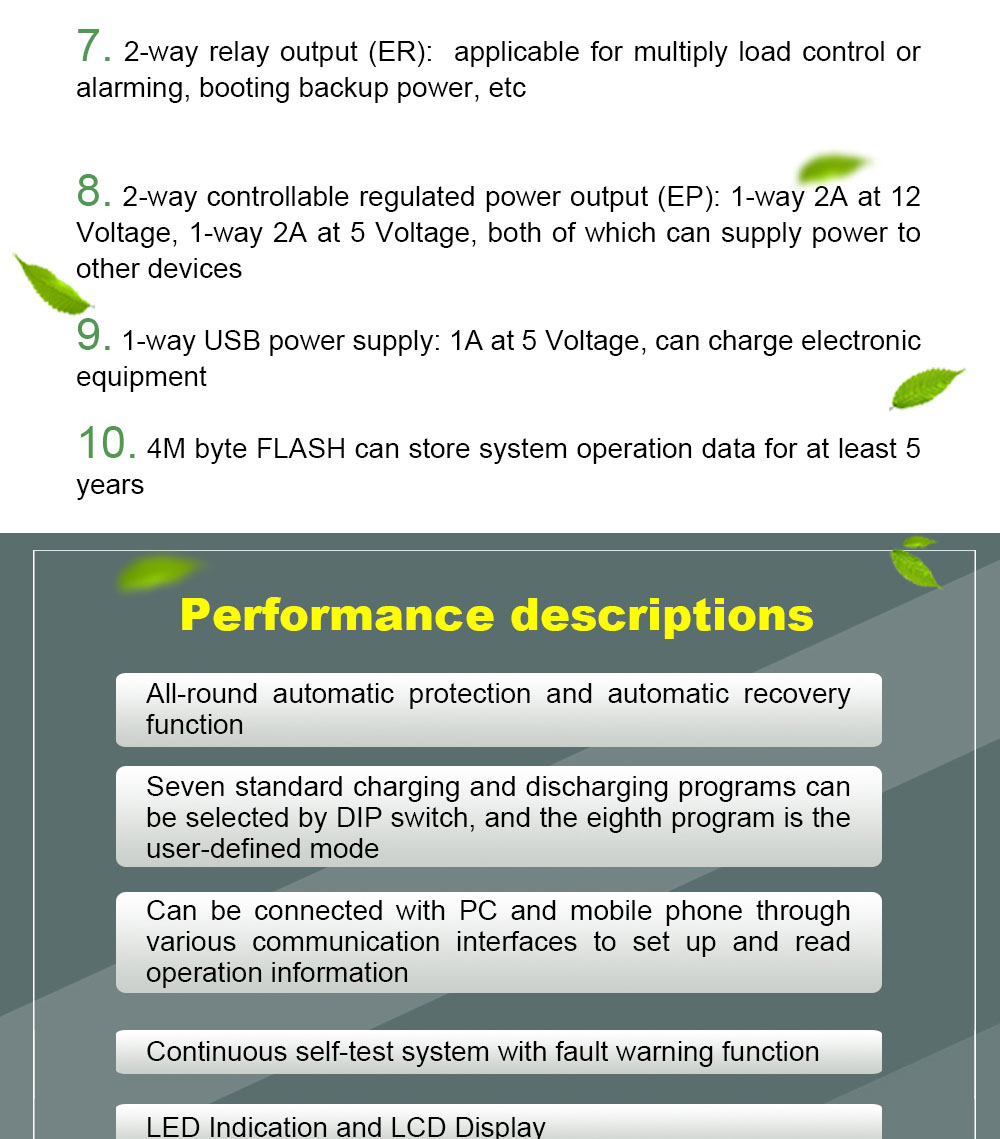

2-way relay output (ER): applicable for multiply load control or alarming, booting backup power, etc;
2-way controllable regulated power output (EP): 1-way 2A at 12 Voltage, 1-way 2A at 5 Voltage, both of which can supply power to other devices.
1-way USB power supply: 1A at 5 Voltage, can charge electronic equipment
4M byte FLASH can store system operation data for at least 5 years； |
|
| Advantages: |
|

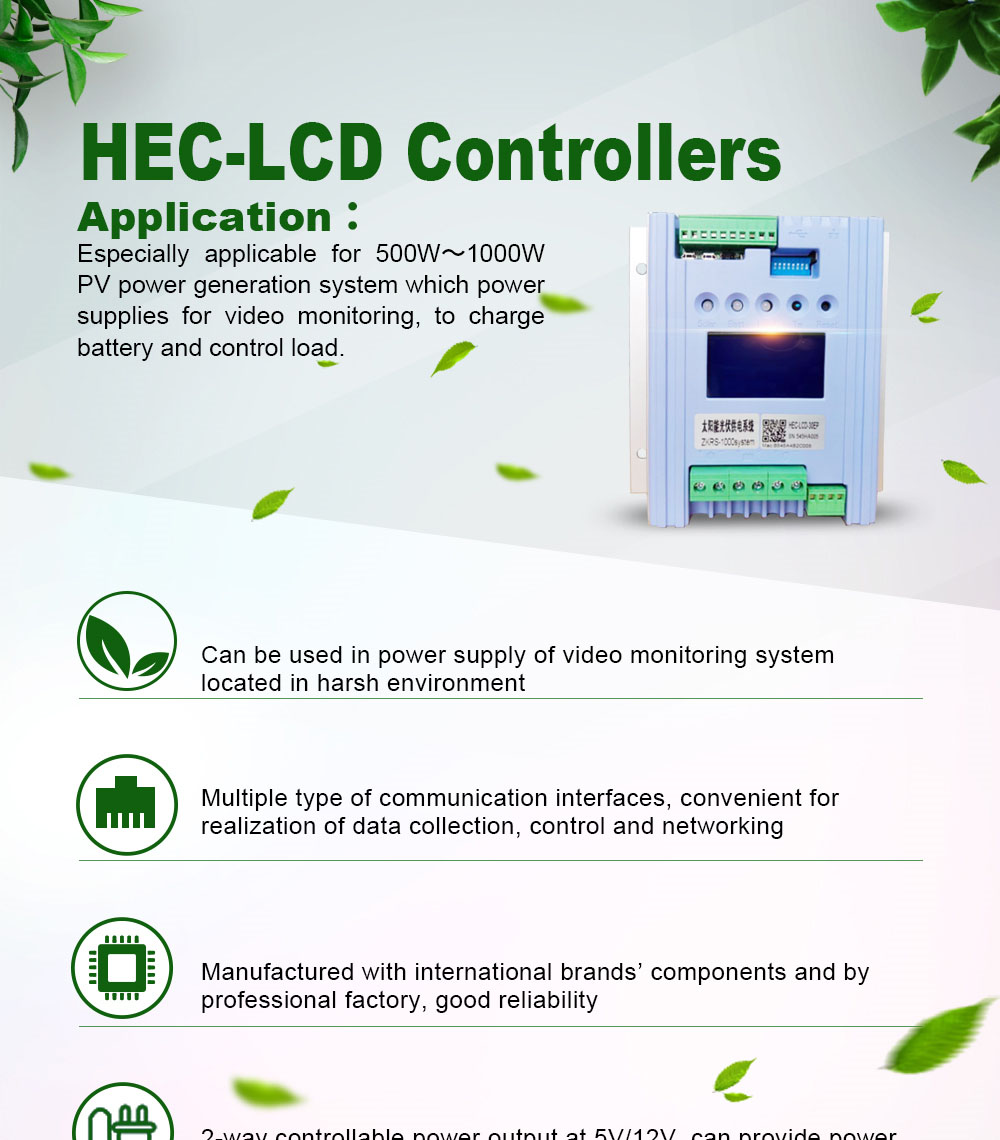

| 1. Can be used in power supply of video monitoring system located in harsh environment;
2. Multiple type of communication interfaces, convenient for realization of data collection, control and networking;
3. Manufactured with international brands’ components and by professional factory, good reliability;
4. 2-way controllable power output at 5V/12V, can provide power for devices |
|
|
